Semi air suspension
Air Master Pro
Air Master Pro
The Air Master Pro is a powerful and flexible semi air suspension system. The ride height is adjustable, making it ideal for use in various loading situations. With this set, the driving characteristics, stability and safety of the vehicle improve. You install the air springs on or next to the original suspension system.
The ride height can be set via fill valves (basic), control panel with compressor (comfort) or fully automatic (automatic). So you can decide which version best suits the payload, driver and passengers.
The Air Master Pro is the ideal solution when the vehicle:
- is alternately or constantly heavily loaded
- is uneven loaded on left and right
- stands too low when loaded
- is sagging e/o bottoms out e/o hits the end stops
- is sensitive to side winds
- shows body roll when cornering
- is unstable or sways when loaded
- does not steer directly
Specifications
Suspension system type:
Air Master Pro
Category:
Semi air suspension
Axle:
Rear axle
Installation of suspension sytem:
On or next to the original suspension system.
Level of support:
Adjustable
Operating system type:
- Basic
- Comfort
- Automatic
Compatible with cars with type of suspension system:
Leaf suspension
Certification:
- TÜV approval
- Compressor complies with ECE R10 directive (EMC - electro magnetic compatibility)
- Complies with ECE R13 directive (operation ABS/ESP)
Options:
Control systems for
Air Master Pro
Our semi air suspension systems come complete and pre-assembled. This saves many installation hours and ultimately costs for the customer.
Air Master Pro
Basic
You can set the air springs independently thanks to the double fill valve, left and right. A very appropriate system for fixed or not much varying payloads.
Contents set
2 air springs
Dual fill valve
Mounting materials
Approval document
Installation manual
Code in article number
-B Basic
Option:
Air Master Pro
Comfort
Thanks to the compressor and control panel, the Air Master Pro can be operated manually. The ride height can be set separately on the left and right via the control panel. Ideal for light commercial vehicles with varying and/or heavy payloads.
Contents set
2 air springs
Compressor (with or without support)
Control panel
Mounting materials
Approval document
Installation manual
Variants and indication in article number

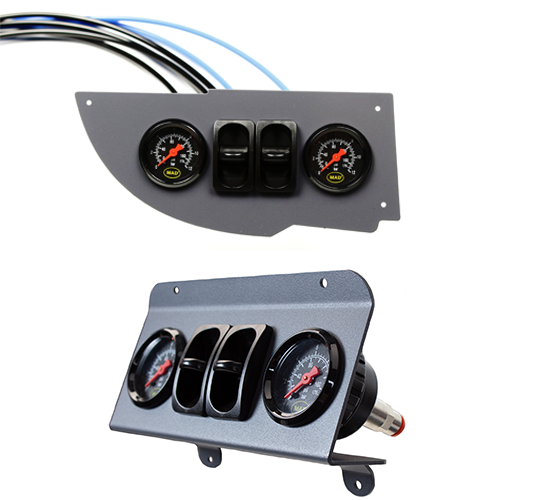

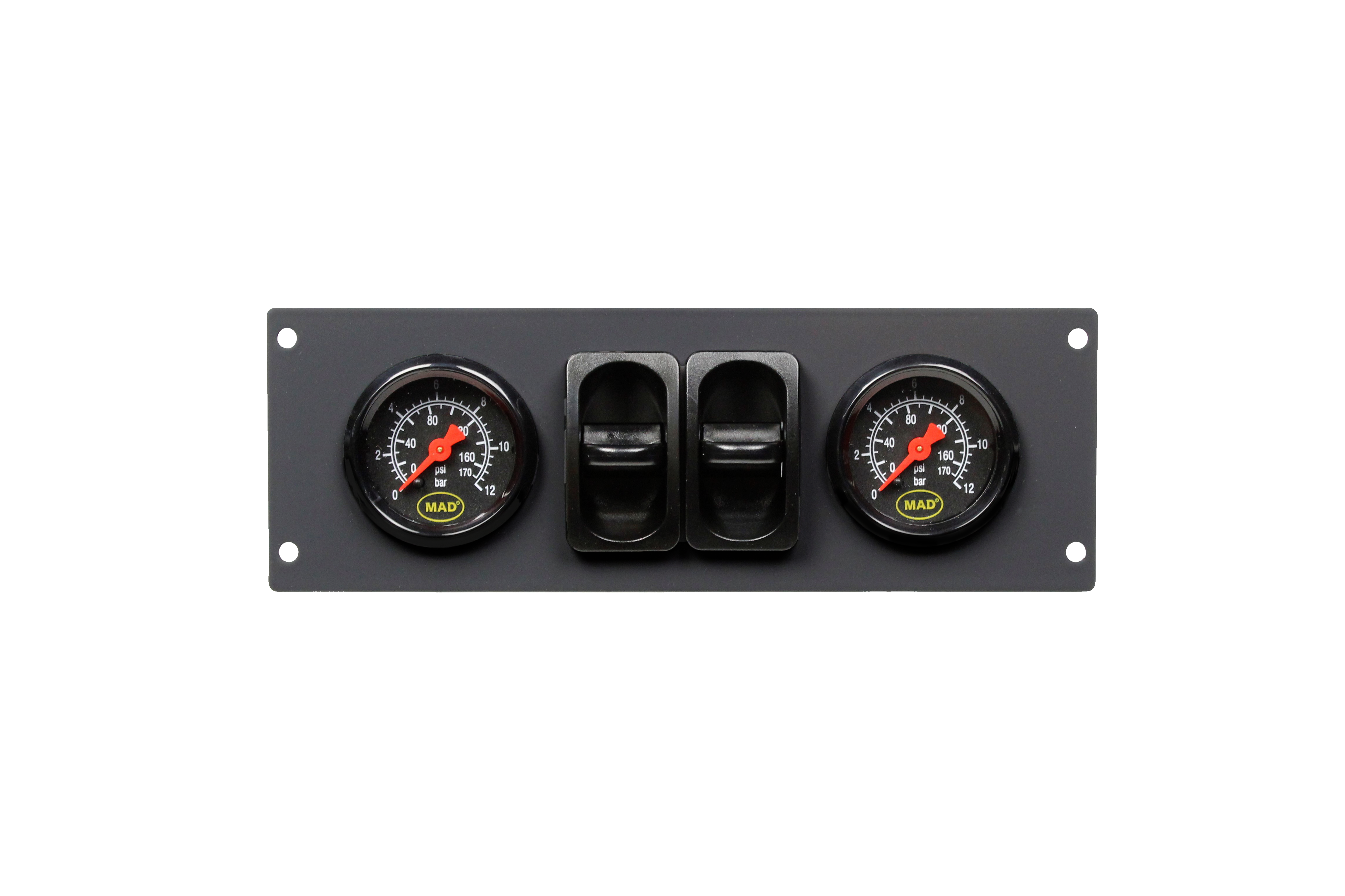

-C Universal control panel
-CS Vehicle-specific control panel

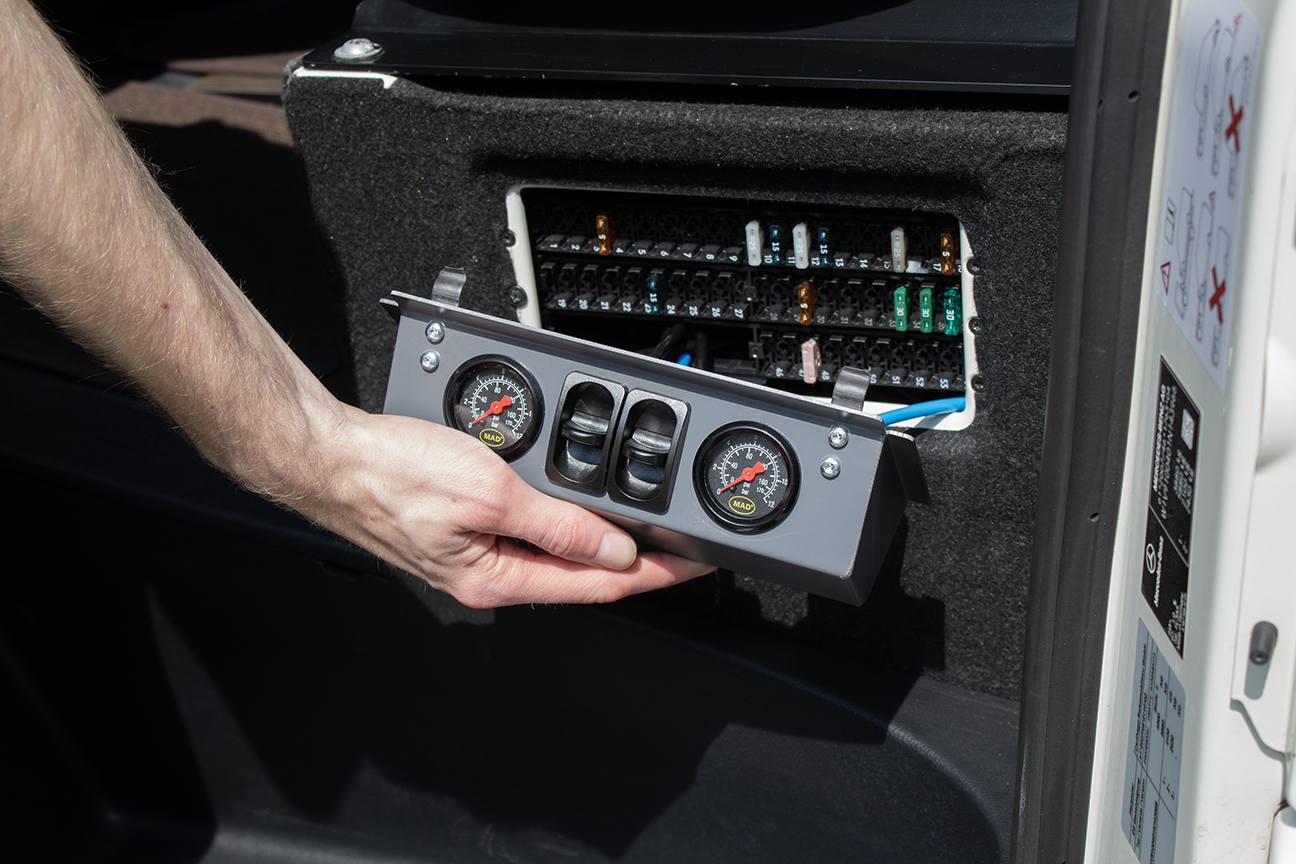

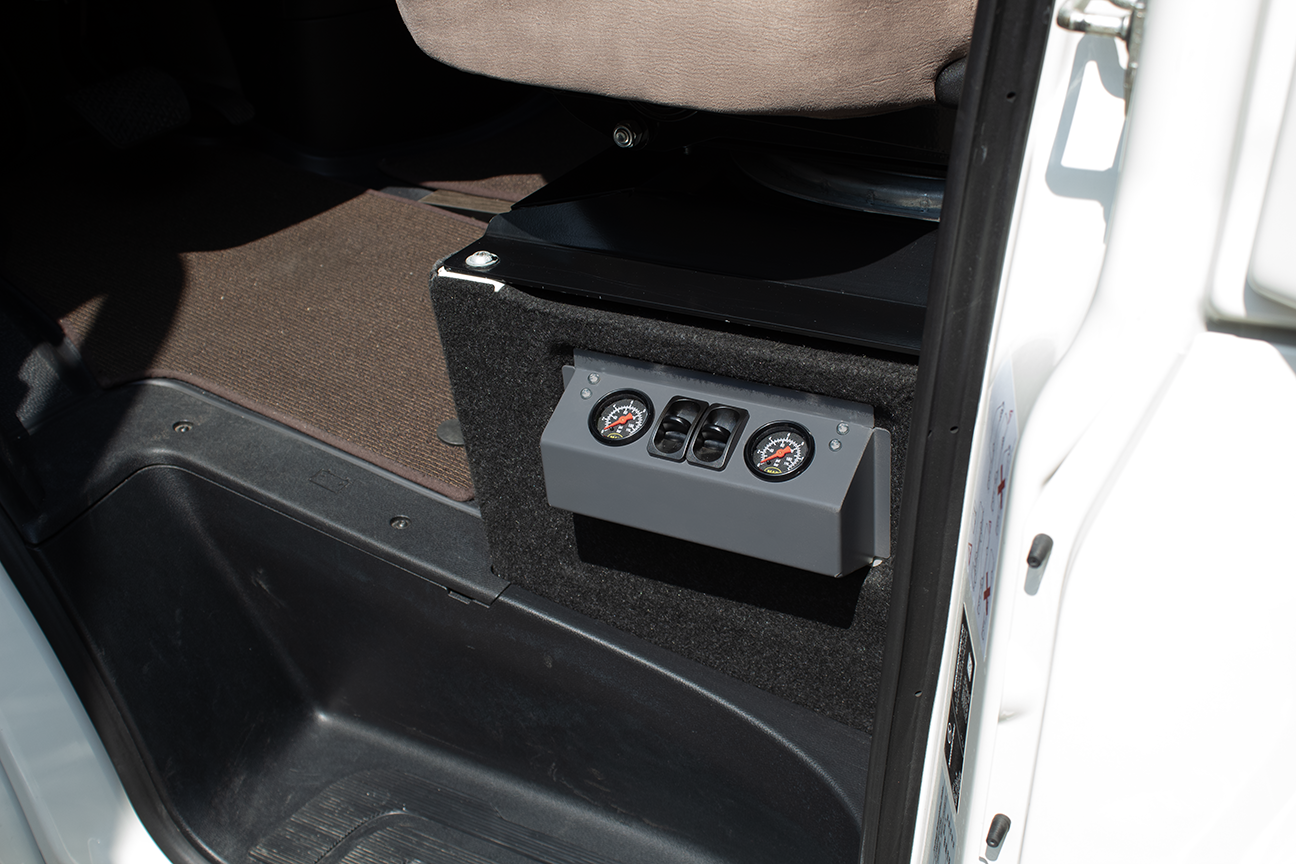

-CS1 Control panel for seat frame
-CM With compressor on bracket – universal control panel
-CSM With compressor on bracket – vehicle-specific control panel
-CSM1 With compressor on bracket – control panel for seat frame
Option:
Air Master Pro
Automatic
The vehicle maintains - fully automatically - the correct ride height under all circumstances, regardless of the weight of the payload. This set is particularly useful when multiple drivers use the vehicle, because you no longer have to pay attention to the level of support or ride height.
Contents set
2 air springs
Compressor, mounted on support
1 height sensor
Wiring harness
Pressure relief valve
Mounting materials
Approval document
Installation manual
Code in article number
-R Automatic
Options:
Discover all the advantages of the Air Master Pro
+ More ground clearance
+ Prevents sagging (static)
+ Prevents hanging crookedly when loaded unevenly (left/right)
+ Adjustable ride height (manual or automatic)
+ Prevents contact between the rear of the vehicle and the road surface (driving on/off ferries)
+ Prevents hitting the end stops of suspension system
+ Prevents bottoming out (tow bar/rear end on speed bumps)
+ Reduces side wind sensitivity and body roll when cornering
+ Improves road holding, stability and leads to more direct steering behavior
+ Optimum tractie with front-wheel drive
+ Prevents swaying of trailer or caravan
+ Quick installation thanks to plug-and-play system
+ Reduces damage to the undercarriage
+ Contributes to safety
+ Long lifespan: metal parts are electrolytically galvanized
Go for supreme comfort
Air Master Pro Ultra
Semi air suspension
Innovative sleeve style airspring technology provides 30% comfort improvement over the original suspension system.
Especially developed for:
Fiat Ducato, Citroën Jumper, Peugeot Boxer and Opel Movano.
